Casting
This card allows casting a camera stream to a Google Cast device. You can enable the cast button with:
type: custom:advanced-camera-card
cameras:
- camera_entity: camera.office
live_provider: go2rtc
menu:
media_player:
enabled: true
Clicking this button will allow you to choose a Google Cast device to cast the camera stream to, or the clip that is currently playing.
There are two different casting methods for cameras: standard and dashboard (see below).
Standard Casting
This is the default casting method.
type: custom:advanced-camera-card
cameras:
- camera_entity: camera.office
live_provider: go2rtc
cast:
method: standard
menu:
media_player:
enabled: true
This will send the camera stream to the Google Cast device through the use of the media_player.play_media Home Assistant action.
The main disadvantage of this method is that the stream will be played through HLS which has a delay of around 10 seconds, making it sub-optimal for live monitoring.
Dashboard Casting
This method is powered by Home Assistant Cast and requires additional configuration, but allows low latency streaming with go2rtc.
type: custom:advanced-camera-card
cameras:
- camera_entity: camera.office
live_provider: go2rtc
cast:
method: dashboard
dashboard:
dashboard_path: dashboard-cast
view_path: office
When the cast button is clicked, the card will perform the following Home Assistant action:
action: cast.show_lovelace_view
data:
entity_id: media_player.kitchen
dashboard_path: dashboard-cast
view_path: office
Which in turn will cast the specified Home Assistant dashboard (and view) to the Google Cast device.
For the example above to work, a dashboard with dashboard-cast URL must exist:
Within that dashboard, create an office view and finally within that view you can place the Advanced Camera Card configured for that camera for a proper full-screen casting experience:
views:
- title: Office
type: panel
path: office
cards:
- type: custom:advanced-camera-card
cameras:
- camera_entity: camera.office
live_provider: go2rtc
profiles:
- low-performance
- casting
The casting profile pre-configures the card to be casted to a 16:9 screen (such as a TV), including hiding all interactive elements and the menu. The low-performance profile is also recommended, as normally casting devices have limited hardware capabilities.

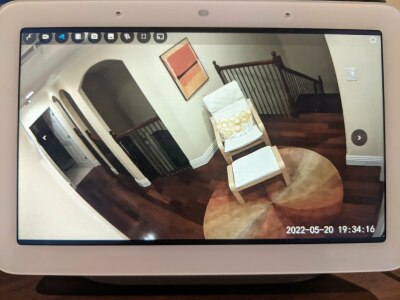

When casting to a Google Nest Hub, the following configuration can be used:
type: custom:advanced-camera-card
cameras:
- camera_entity: camera.office
live_provider: go2rtc
profiles:
- low-performance
- casting
menu:
style: hidden
dimensions:
aspect_ratio: 1024:600
This restores the menu and sets the aspect ratio to 1024:600, which is the resolution of the Nest Hub.
Limitations
Casting Home Assistant dashboards comes with a number of caveats:
- Home Assistant Casting does not support the HA
streamingcomponent (source). This means clips playing and thehalive provider can not work. Other live providers such asjsmpegandwebrtc-cardfunction correctly. - The Javascript fullscreen API does not work, so the fullscreen button does not
work (use a
panelview instead).
