Examples

Actions on `tap`

You can add actions to the card to be trigger on tap, double_tap, hold, start_tap or end_tap.

In this example double clicking the card in any view will cause the card to go into fullscreen mode, except when the view is live in which case the office lights are toggled.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
view:
  actions:
    double_tap_action:
      action: custom:frigate-card-action
      frigate_card_action: fullscreen
live:
  actions:
    entity: light.office_main_lights
    double_tap_action:
      action: toggle

Aspect ratios

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
dimensions:
  aspect_ratio_mode: static
  aspect_ratio: '4:3'

Automation

Responding to fullscreen

This example will automatically turn on the first configured substream when the card is put in fullscreen mode, and turn off the substream when exiting fullscreen mode.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    live_provider: image
    dependencies:
      cameras:
        - office_hd
  - camera_entity: camera.office
    title: Office HD
    live_provider: go2rtc
    id: office_hd
    capabilities:
      disable_except:
        - substream
automations:
  - conditions:
      - condition: fullscreen
        fullscreen: true
    actions:
      - action: custom:frigate-card-action
        frigate_card_action: live_substream_on
    actions_not:
      - action: custom:frigate-card-action
        frigate_card_action: live_substream_off

Responding to key input

In addition to a handful of reconfigurable built-in keyboard shortcuts, automations can be used to take any action based on any keyboard input. These examples use key conditions to assess keyboard state before taking action.

Change to `live` temporarily

In this example, the view will change to live, when Alt+Z is pressed, and change to the clips view 5 seconds later.

automations:
  - conditions:
      - condition: key
        key: z
        alt: true
    actions:
      - action: custom:frigate-card-action
        frigate_card_action: live
      - action: custom:frigate-card-action
        frigate_card_action: sleep
        duration:
          s: 5
      - action: custom:frigate-card-action
        frigate_card_action: clips

Change to `live` while key held down

In this example, the view will change to live, when Alt+Z is held down, and immediately change to clips when released.

automations:
  - conditions:
      - condition: key
        key: z
        alt: true
    actions:
      - action: custom:frigate-card-action
        frigate_card_action: live
    actions_not:
      - action: custom:frigate-card-action
        frigate_card_action: clips

Cameras

`frigate` camera without a `camera_entity`

In this example, there is no Home Assistant entity linked to the camera, just a frigate camera name:

type: custom:frigate-card
cameras:
  - frigate:
      camera_name: office
    live_provider: go2rtc

`go2rtc` stream without a `camera_entity`

In this example, there is no Home Assistant entity linked to the camera, just a go2rtc stream.

type: custom:frigate-card
cameras:
  - live_provider: go2rtc
    go2rtc:
      stream: office
      url: https://my.go2rtc.url:1984/

!> Browsers will reject mixed content: if you access Home Assistant over https, you must also put go2rtc behind https and use that in the url parameter.

`card-mod`

This card allows the use of card-mod to style arbitrary card contents.

!> card-mod relies on the underlying internal DOM structure to style elements -- as such, while its use is possible, it's not officially supported and zero attempt is made to preserve backwards compatability of the internal DOM between any versions. It may look good, but you're on your own!

This example changes the color and removes the padding around a Picture Elements state label.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
card_mod:
  style:
    frigate-card-elements $:
      hui-state-label-element $: |
        div {
          padding: 0px !important;
          color: blue;
        }

Cast a `dashboard`

This example will configure a Frigate card that can cast a dashboard view to a media player, which has a second Frigate card in panel mode with a low-latency live provider.

Source card

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    live_provider: image
    cast:
      method: dashboard
      dashboard:
        dashboard_path: cast
        view_path: office

Dashboard configuration

?> This dashboard is configured at the path /cast/ (path referred to in dashboard_path above).

title: Frigate Card Casting
views:
  - title: Casting
    # This path is referred to in `view_path` above.
    path: office
    # Ensure the video is "maximized" / dashboard in "panel" mode.
    type: panel
    cards:
      - type: custom:frigate-card
        cameras:
          - camera_entity: camera.office
            live_provider: go2rtc

Conditional elements

You can restrict elements to only show for certain views using a custom:frigate-card-conditional element. This example shows a car icon that calls a service but only in the live view.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-conditional
    conditions:
      - condition: view
        views:
          - live
    elements:
      - type: icon
        icon: mdi:car
        style:
          background: rgba(255, 255, 255, 0.25)
          border-radius: 5px
          right: 25px
          bottom: 50px
        tap_action:
          action: perform-action
          service: amcrest.ptz_control
          data:
            entity_id: camera.kitchen
            movement: up

You can have icons conditionally added to the menu based on entity state.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: conditional
    conditions:
      - condition: state
        entity: light.office_main_lights
        state: on
    elements:
      - type: custom:frigate-card-menu-state-icon
        entity: light.office
        tap_action:
          action: toggle

This example adds a menu button to optionally activate a siren when the camera is triggered.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-conditional
    elements:
      - type: custom:frigate-card-menu-icon
        icon: mdi:alarm-bell
        title: Activate alarm
        style:
          color: red
        tap_action:
          action: perform-action
          perform_action: homeassistant.toggle
          target:
            entity_id: siren.siren
    conditions:
      - condition: triggered
        triggered:
          - camera.office

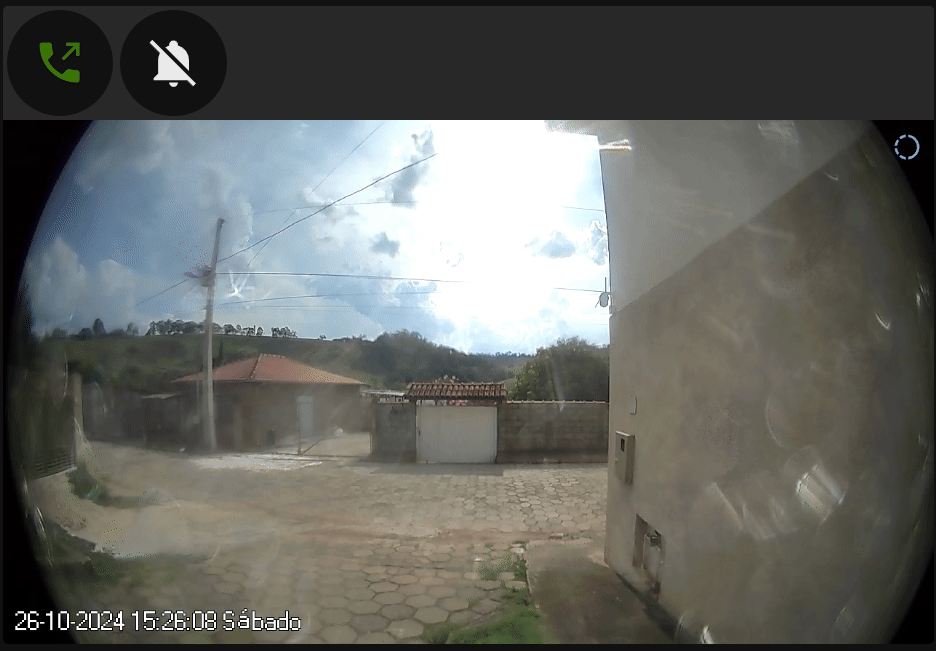

Doorbell

felipecrs/dahua-vto-on-home-assistant provides an example on how this card can be used to answer a doorbell in Home Assistant.

Events from other cameras

dependencies.cameras allows events/recordings for other cameras to be shown along with the currently selected camera. For example, this can be used to show events with the birdseye camera (since it will not have events of its own).

Using dependent cameras with birdseye

This example shows events for two other cameras when birdseye is selected.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
  - camera_entity: camera.kitchen
  - frigate:
      camera_name: birdseye
    dependencies:
      cameras:
        - camera.office
        - camera.kitchen

Using dependent cameras with birdseye for all cameras

This example shows events for all other cameras when birdseye is selected. This is just a shortcut for naming all other cameras.

type: custom:frigate-card
cameras:
  - camera_entity: camera.kitchen
  - camera_entity: camera.sitting_room
  - frigate:
      camera_name: birdseye
    dependencies:
      all_cameras: true

Human interaction

This example will automatically use a HD live substream when the mouse cursor interacts with the card.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    live_provider: image
    dependencies:
      cameras:
        - camera.office_hd
  - camera_entity: camera.office_hd
    live_provider: go2rtc
    capabilities:
      disable_except:
        - substream
automations:
  - actions:
      - action: custom:frigate-card-action
        frigate_card_action: live_substream_on
    actions_not:
      - action: custom:frigate-card-action
        frigate_card_action: live_substream_off
    conditions:
      - condition: interaction
        interaction: true

Media layout

These examples change how the media fits and is positioned within the card dimensions.

Stretch a camera into a 4:4 square

type: custom:frigate-card
cameras:
  - camera_entity: camera.landing
    dimensions:
      aspect_ratio: '4:4'
      layout:
        fit: fill

Convert a landscape camera to a portrait live view

Take the left-hand side (position with x == 0) and use that as the basis of a 9:16 (i.e. portrait) live view.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    dimensions:
      aspect_ratio: '9:16'
      layout:
        fit: cover
        position:
          x: 0

This example moves the fullscreen button into its own group aligned to the left, enables the image button and orders it furthest to the right.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
menu:
  alignment: right
  buttons:
    image:
      enabled: true
      priority: 100
    fullscreen:
      alignment: opposing

You can add custom icons to the menu with arbitrary actions. This example adds an icon that navigates the browser to the releases page for this card:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-menu-icon
    icon: mdi:book
    tap_action:
      action: url
      url_path: https://github.com/dermotduffy/frigate-hass-card/releases

You can add custom state icons to the menu to show the state of an entity and complete arbitrary actions. This example adds an icon that represents the state of the light.office_main_lights entity, that toggles the light on double click.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-menu-state-icon
    entity: light.office_main_lights
    tap_action:
      action: toggle

Multiple actions

This example shows how to configure multiple actions for a single Frigate card user interaction, in this case both selecting a different camera and changing the view on tap. Note that multiple actions are not supported on stock Picture Elements, see actions for more information.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-menu-icon
    icon: mdi:chair-rolling
    tap_action:
      - action: custom:frigate-card-action
        frigate_card_action: camera_select
        camera: camera.office
      - action: custom:frigate-card-action
        frigate_card_action: live

Multiple providers

Cameras can be repeated with different providers (note the required use of id to provide a separate unambiguous way of referring to that camera, since the camera_entity is shared between the two cameras).

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    live_provider: jsmpeg
    title: Office (JSMPEG)
  - camera_entity: camera.office
    live_provider: webrtc-card
    title: Office (WebRTC)
    id: office-webrtc

Overriding configuration

You can override card configuration when certain conditions are met.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
overrides:
  - conditions:
      - condition: state
        entity: light.office_main_lights
        state: 'on'
    merge:
      menu:
        position: bottom

Change default view based on HA state

This example changes the default card view from live to image depending on the value of the binary_sensor.alarm_armed sensor. The override alone will only change the default when the card next is requested to change to the default view. By also including the view.default_reset.entities parameter, we ask the card to trigger a card update based on that entity -- which causes it to use the new overriden default immediately.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
view:
  default: live
  default_reset:
    entities:
      - binary_sensor.alarm_armed
overrides:
  - conditions:
      - condition: state
        entity: binary_sensor.alarm_armed
        state: 'off'
    merge:
      view:
        default: image

Change grid behavior in full screen

This example will always render 5 columns in fullscreen mode in both the live and media viewer views, and will not enlarge the selected item. The normal auto-layout behavior will be used outside of fullscreen mode.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
overrides:
  - conditions:
      - condition: fullscreen
        fullscreen: true
      - condition: display_mode
        display_mode: grid
    merge:
      live:
        display:
          grid_columns: 5
          grid_selected_width_factor: 1
      media_viewer:
        display:
          grid_columns: 5
          grid_selected_width_factor: 1

This example changes the menu style to overlay in expanded mode in order to take advantage of the extra horizontal space of the dialog/popup.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
menu:
  style: hidden
overrides:
  - conditions:
      - condition: expand
        expand: true
    merge:
      menu:
        style: overlay

This example disables the menu unless the card is in fullscreen mode, and uses a card-wide action to enable fullscreen mode on double_tap.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
view:
  actions:
    double_tap_action:
      action: custom:frigate-card-action
      frigate_card_action: fullscreen
overrides:
  - conditions:
      - condition: fullscreen
        fullscreen: true
    merge:
      menu:
        style: none

Remove a camera when an entity state changes

This example removes a camera from the card when an entity is disabled (e.g. a switch controlling power to the camera).

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
  - camera_entity: camera.kitchen
overrides:
  - conditions:
      - condition: state
        entity: switch.kitchen_camera_power
        state: off
    delete:
      - 'cameras[1]'

PTZ control

The card supports using PTZ controls to conveniently control pan, tilt and zoom for cameras. If you're using a Frigate camera, and Frigate itself shows PTZ controls, this should work straight out of the box without any extra configuration:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office

If you're using a non-Frigate camera, or Frigate itself does not support the PTZ controls on your camera but Home Assistant does, you can still manually configure actions for the card to perform for each PTZ control:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    ptz:
      actions_left:
        action: perform-action
        perform_action: homeassistant.toggle
        target:
          entity_id: switch.camera_move_left

See the full Camera PTZ Configuration for more information.

`screen` conditions

These examples show altering the card configuration based on device or viewport properties.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
  - camera_entity: camera.kitchen
menu:
  style: overlay
overrides:
  - conditions:
      - condition: screen
        media_query: '(orientation: landscape)'
    merge:
      menu:
        position: left

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
  - camera_entity: camera.kitchen
overrides:
  - conditions:
      - condition: screen
        media_query: '(max-width: 300px)'
    merge:
      menu:
        style: none
      live:
        controls:
          next_previous:
            style: none
          thumbnails:
            mode: none

State Badges

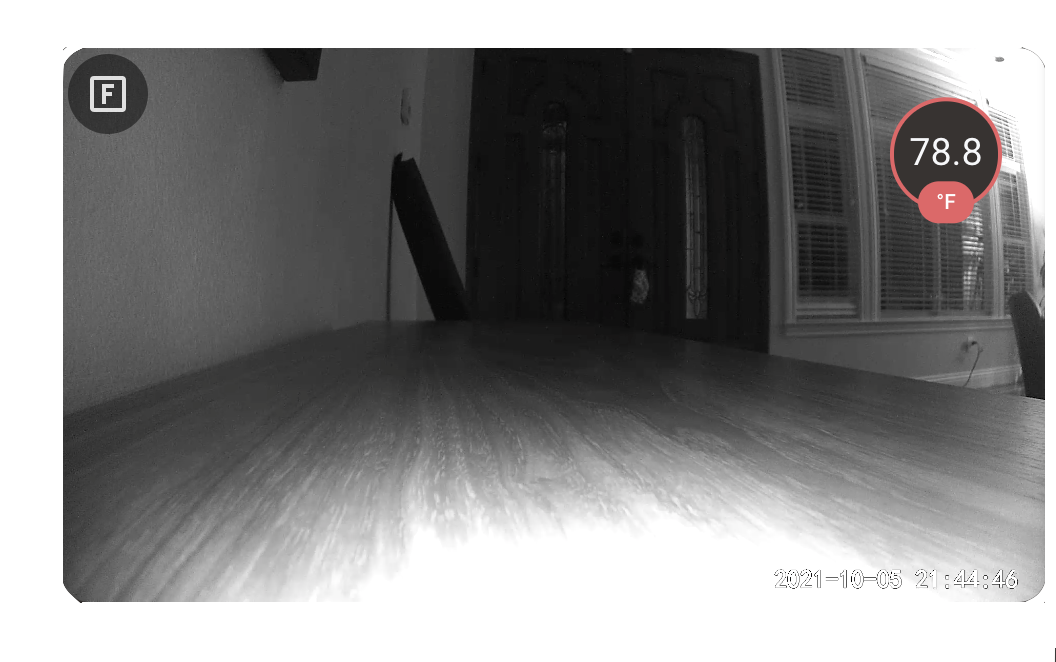

You can add a state badge to the card showing arbitrary entity states. This example adds a state badge showing the temperature and hides the label text:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: state-badge
    entity: sensor.office_temperature
    style:
      right: '-20px'
      top: 100px
      color: rgba(0,0,0,0)
      opacity: 0.5

Static images

This example fetches a static image every 10 seconds (in this case the latest image saved on the Frigate server for a given camera).

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
view:
  default: image
image:
  src: https://my-friage-server/api/living_room/latest.jpg
  refresh_seconds: 10

Status bar

Disable status bar

This example disables the status bar.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
status_bar:
  style: none

Dynamic status bar contents

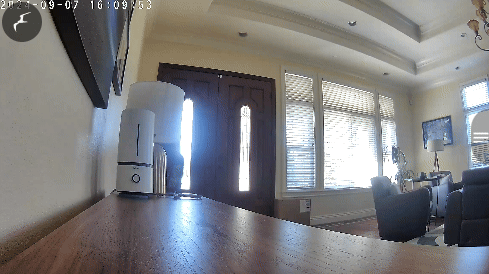

This example shows an icon and a message on the status bar when a camera is triggered, replacing the existing contents of the status bar through the use of exclusive.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
automations:
  - conditions:
      - condition: triggered
        triggered:
          - camera.office
    actions:
      - action: custom:frigate-card-action
        frigate_card_action: status_bar
        status_bar_action: add
        items:
          - type: custom:frigate-card-status-bar-icon
            icon: mdi:alarm-light
            exclusive: true
          - type: custom:frigate-card-status-bar-string
            string: Intruder detected!
            expand: true
            exclusive: true
            sufficient: true
    actions_not:
      - action: custom:frigate-card-action
        frigate_card_action: status_bar
        status_bar_action: reset

Submenus

You can add submenus to the menu -- buttons that when pressed reveal a dropdown submenu of configurable options.

Basic submenu

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-menu-submenu
    icon: mdi:menu
    items:
      - title: Lights
        icon: mdi:lightbulb
        entity: light.office_main_lights
        tap_action:
          action: toggle
      - title: Google
        icon: mdi:google
        tap_action:
          action: url
          url_path: https://www.google.com
      - title: Fullscreen
        icon: mdi:fullscreen
        tap_action:
          action: custom:frigate-card-action
          frigate_card_action: fullscreen

Conditional submenu

This example shows submenus conditional on the camera selected.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-conditional
    conditions:
      - condition: camera
        cameras:
          - camera.office
    elements:
      - type: custom:frigate-card-menu-submenu
        icon: mdi:door
        items:
          - title: Office Lights
            icon: mdi:lightbulb
            entity: light.office_main_lights
            tap_action:
              action: toggle
  - type: custom:frigate-card-conditional
    conditions:
      - condition: camera
        cameras:
          - camera.kitchen
    elements:
      - type: custom:frigate-card-menu-submenu
        icon: mdi:sofa
        items:
          - title: Kitchen Lights
            icon: mdi:lightbulb
            entity: light.kitchen_lights
            tap_action:
              action: toggle
          - title: Kitchen Lamp
            icon: mdi:lightbulb
            entity: light.kitchen_lamp
            tap_action:
              action: toggle

`select` submenu

You can easily add a submenu to the menu based on a select or input_select entity. This example imagines the user has an input_select entity configured in their Home Assistant configuration like so:

input_select:
  office_scene:
    name: Office Scene Select
    options:
      - scene.office_quiet_scene
      - scene.office_party_scene
    icon: mdi:lightbulb

The following will convert this entity into a submenu:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-menu-submenu-select
    entity: input_select.office_scene

To override 1 or more individual options (e.g. to set custom icons and titles)

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: custom:frigate-card-menu-submenu-select
    icon: mdi:lamps
    entity: input_select.office_scene
    options:
      scene.office_quiet_scene:
        icon: mdi:volume-off
        title: Ssssssh
      scene.office_party_scene:
        icon: mdi:party-popper
        title: Party!

Substreams

The card supports configuring 'substreams' (alternative live views) a given camera through the use of camera dependencies.

This example shows two substreams for a single live camera, and uses the 'HD' icon.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    live_provider: image
    dependencies:
      cameras:
        - office_hd
  - camera_entity: camera.office
    title: Office HD
    live_provider: go2rtc
    id: office_hd
    # This camera serves only as a substream.
    capabilities:
      disable_except:
        - substream
menu:
  buttons:
    substreams:
      icon: mdi:high-definition

Trigger actions

You can control the card itself with the custom:frigate-card-action action. This example shows an icon that toggles the card fullscreen mode.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
elements:
  - type: icon
    icon: mdi:fullscreen
    style:
      left: 40px
      top: 40px
    tap_action:
      action: custom:frigate-card-action
      frigate_card_action: fullscreen

Trigger fullscreen

The card cannot automatically natively trigger fullscreen mode without the user clicking, since Javascript (understandbly) prevents random websites from triggering fullscreen mode without the user having activated it.

This example uses hass-browser_mod with an automation to trigger a popup. Thanks to conorlap@ for the following example:

alias: >-
  Doorbell Pressed OR Human Detected - Firefox browser full screen video feed
  for 15 seconds
description: ''
trigger:
  - platform: state
    from: 'off'
    to: 'on'
    entity_id:
      - binary_sensor.frontdoor_person_occupancy
  - platform: state
    entity_id:
      - binary_sensor.front_door_dahua_button_pressed
    to: 'on'
condition: []
action:
  - service: browser_mod.popup
    data:
      size: wide
      timeout: 15000
      content:
        type: custom:frigate-card
        aspect_ratio: 55%
        cameras:
          - camera_entity: camera.frontdoor
            live_provider: ha
        menu:
          style: none
        live:
          controls:
            title:
              mode: none
    target:
      device_id:
        - d0e93101edfg44y3yt35y5y45y54y
mode: single

Trigger `live`

This example will change to live when a camera is triggered, using different trigger conditions per camera. It will change back to the default view when untriggered.

type: custom:frigate-card
cameras:
  # This is a Frigate camera which will automatically
  # be triggered when events occur.
  - camera_entity: camera.office
  # This is a Frigate camera which will only be triggered
  # by motion entity changes or a door being opened.
  - camera_entity: camera.kitchen
    triggers:
      occupancy: false
      motion: true
      entities:
        - binary_sensor.kitchen_door_opened
      events: []
view:
  triggers:
    show_trigger_status: true
    filter_selected_camera: false
    actions:
      trigger: live
      untrigger: default

Disable the stock video controls and add menu button equivalents.

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
live:
  controls:
    builtin: false
media_viewer:
  controls:
    builtin: false
menu:
  buttons:
    play:
      enabled: true
    mute:
      enabled: true

URL actions

The card can respond to actions in the query string. See URL Actions.

?> These examples assume the dashboard URL is https://ha.mydomain.org/lovelace-test/0 .

Choosing `clips` view on a named card

This example assumes that one card (of potentially multiple Frigate Cards on the dashboard) is configured with a card_id parameter:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
card_id: main

https://ha.mydomain.org/lovelace-test/0?frigate-card-action.main.clips

Choosing the camera from a separate picture elements card

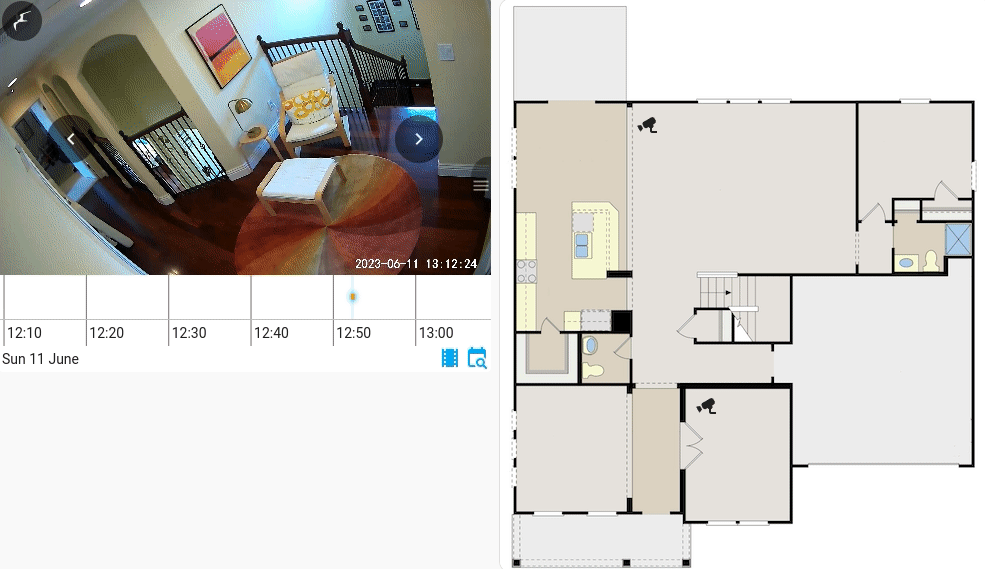

In this example, the card will select a given camera when the user navigates from a separate Picture Elements card:

Frigate Card configuration:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
  - camera_entity: camera.kitchen

Picture Elements configuration:

type: picture-elements
image: https://demo.home-assistant.io/stub_config/floorplan.png
elements:
  - type: icon
    icon: mdi:cctv
    style:
      top: 22%
      left: 30%
    tap_action:
      action: navigate
      navigation_path: /lovelace-test/0?frigate-card-action.camera_select=camera.office
  - type: icon
    icon: mdi:cctv
    style:
      top: 71%
      left: 42%
    tap_action:
      action: navigate
      navigation_path: /lovelace-test/0?frigate-card-action.camera_select=camera.kitchen

Selecting a camera in expanded mode via query string

https://ha.mydomain.org/lovelace-test/0?frigate-card-action.camera_select=kitchen&frigate-card-action.expand

WebRTC Card configuration

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    live_provider: webrtc-card
    webrtc_card:
      ui: true

Zoom

Pre-defining camera zoom and pan

This example changes the default zoom/pan settings for a camera to always zoom in on a given area:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    dimensions:
      layout:
        zoom: 3
        pan:
          x: 20
          y: 80

Disable zooming in media views

This example prevents zooming on the media viewer but keeps it on in other views (e.g. live view):

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    dimensions:
      layout:
        zoom: 3
        pan:
          x: 20
          y: 80
media_viewer:
  zoomable: false

Different zoom settings in media viewer vs `live`

This example uses different settings for the media viewer and live view, by overriding the camera configuration:

type: custom:frigate-card
cameras:
  - camera_entity: camera.office
    dimensions:
      layout:
        zoom: 2
overrides:
  - conditions:
      - condition: view
        views:
          - media
    set:
      'cameras[0].dimensions.layout':
        zoom: 3
        pan:
          x: 100
          y: 100

Automatically zoom based on state

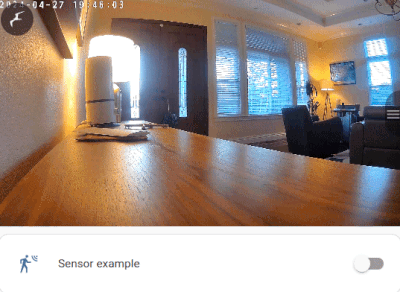

This example automatically zooms in and out based on the state of an entity:

type: custom:frigate-card
cameras:
  - camera_entity: camera.living_room
    live_provider: go2rtc
debug:
  logging: true
automations:
  - conditions:
      - condition: state
        entity: binary_sensor.door_contact
        state: 'on'
    actions:
      - action: custom:frigate-card-action
        frigate_card_action: ptz_digital
        target_id: camera.living_room
        absolute:
          zoom: 4
          pan:
            x: 38
            y: 20
    actions_not:
      - action: custom:frigate-card-action
        frigate_card_action: ptz_digital
        target_id: camera.living_room

30 KiB Raw Blame History
