advanced-camera-card/docs/configuration/menu.md

menu

Configures how the card menu behaves.

menu:
  # [...]

Option	Default	Description
alignment	left	Whether to align the menu buttons to the left, right, top or bottom of the menu. Some selections may have no effect depending on the value of position (e.g. it doesn't make sense to left align icons on a menu with position to the left).
button_size	40	The size of the menu buttons in pixels. Must be >= 20.
buttons		Whether to show or hide built-in buttons. See below.
position	top	Whether to show the menu on the left, right, top or bottom side of the card. Note that for the outside style only the top and bottom positions have an effect.
style	hidden	The menu style to show by default, one of none, hidden, hover, hover-card, overlay, or outside. See below.

buttons

All configuration is under:

menu:
  buttons:
    [button]:
      # [...]

Available Buttons

Button name	Description
camera_ui	The camera_ui menu button: brings the user to a context-appropriate page on the UI of their camera engine (e.g. the Frigate camera homepage). Will only appear if the camera engine supports a camera UI (e.g. if frigate.url option is set for frigate engine users).
cameras	The camera selection submenu. Will only appear if multiple cameras are configured.
clips	The clips view menu button: brings the user to the clips view on tap and the most-recent clip view on hold.
display_mode	The display_mode button allows changing between single and grid views.
download	The download menu button: allow direct download of the media being displayed.
expand	The expand menu button: expand the card into a popup/dialog.
fullscreen	The fullscreen menu button: expand the card to consume the fullscreen. Please note that fullscreen behavior on iPhone is limited, see troubleshooting.
image	The image view menu button: brings the user to the static image view.
iris	The main Advanced Camera Card iris menu button: brings the user to the default configured view (view.default), or collapses/expands the menu if the menu.style is hidden .
live	The live view menu button: brings the user to the live view.
media_player	The media_player menu button: sends the visible media to a remote media player. Supports Frigate clips, snapshots and live camera (only for cameras that specify a camera_entity and only using the default HA stream (equivalent to the ha live provider)). jsmpeg or webrtc-card are not supported, although live can still be played as long as camera_entity is specified. In the player list, a tap will send the media to the player, a hold will stop the media on the player.
microphone	The microphone button allows usage of 2-way audio in certain configurations. See Using 2-way audio.
ptz_controls	The ptz_controls button shows or hides the PTZ controls.
ptz_home	The ptz_home button allows easily returning the camera to default home position.
recordings	The recordings view menu button: brings the user to the recordings view on tap and the most-recent recording view on hold.
screenshot	The screenshot menu button: take a screenshot of the loaded media (e.g. a still from a video).
snapshots	The snapshots view menu button: brings the user to the clips view on tap and the most-recent snapshot view on hold.
timeline	The timeline menu button: show the event timeline.

Options for each button

Option	Default	Description
alignment	matching	Whether this menu item should have an alignment that is matching the menu alignment or opposing the menu alignment. Can be used to create two separate groups of buttons on the menu. The priority option orders buttons within a given alignment.
enabled	true for iris, cameras, substreams, live, clips, snapshots, timeline, download, camera_ui, fullscreen, media_player, display_mode and ptz_home. false for image, expand, microphone, mute, play, recordings, screenshot, ptz_controls	Whether or not to show the button.
icon		An icon to overriding the default for that button, e.g. mdi:camera-front. See also custom icons.
permanent	false	If false the menu item is hidden when the menu has the hidden style and the menu is closed, otherwise it is shown (and sorted to the front).
priority	50	The menu item priority. Higher priority items are ordered closer to the start of the menu alignment (i.e. a button with priority 70 will order further to the left than a button with priority 60). Priority applies separately to matching and opposing groups (see alignment above). Minimum 0, maximum 100.

style

This card supports several menu styles.

Key	Description	Screenshot

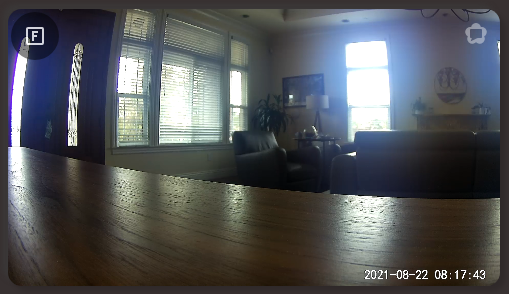

hidden	Hide the menu by default. It may be toggled open as needed with the iris button.
hover-card	Overlay the menu over the card contents when the mouse is over the card, otherwise it is not shown. The iris button shows the default view.
hover	Overlay the menu over the card contents when the mouse is over the menu, otherwise it is not shown. The iris button shows the default view.

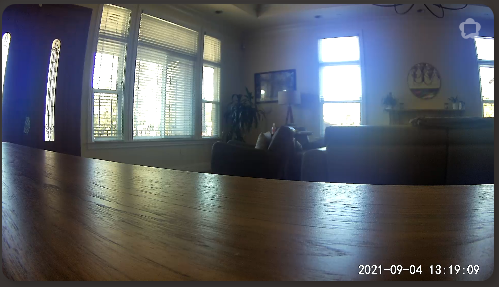

none	No menu is shown.

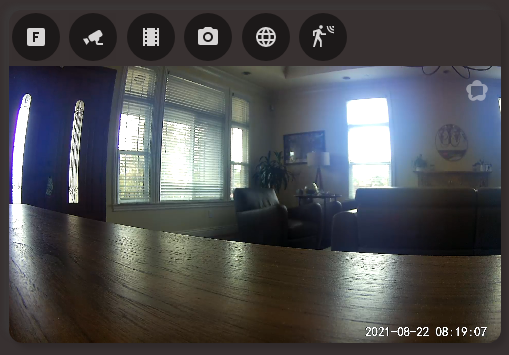

outside	Render the menu outside the card (i.e. above it if position is top, or below it if position is bottom). The iris button shows the default view.

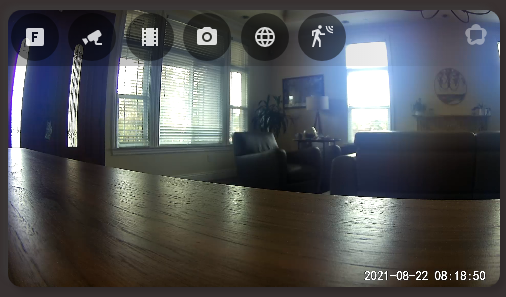

overlay	Overlay the menu over the card contents. The iris button shows the default view.

Fully expanded reference

menu:
  alignment: left
  buttons:
    iris:
      priority: 50
      enabled: true
      alignment: matching
      icon: iris
    cameras:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:video-switch
    substreams:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:video-input-component
    live:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:cctv
    clips:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:filmstrip
    snapshots:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:camera
    image:
      priority: 50
      enabled: false
      alignment: matching
      icon: mdi:image
    timeline:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:chart-gantt
    download:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:download
    camera_ui:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:web
    fullscreen:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:fullscreen
    expand:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:arrow-expand-all
    media_player:
      priority: 50
      enabled: false
      alignment: matching
      icon: mdi:cast
    microphone:
      priority: 50
      enabled: false
      alignment: matching
      icon: mdi:microphone
      type: momentary
    mute:
      priority: 50
      enabled: false
      alignment: matching
      icon: mdi:volume-off
    play:
      priority: 50
      enabled: false
      alignment: matching
      icon: mdi:play
    ptz_controls:
      priority: 50
      enabled: false
      alignment: matching
      icon: mdi:pan
    ptz_home:
      priority: 50
      enabled: true
      alignment: matching
      icon: mdi:home
  button_size: 40
  position: top
  style: hidden
