menu
Configures how the card menu behaves.
menu:
[...]
| Option | Default | Description |
|---|---|---|
alignment |
left |
Whether to align the menu buttons to the left, right, top or bottom of the menu. Some selections may have no effect depending on the value of position (e.g. it doesn't make sense to left align icons on a menu with position to the left). |
button_size |
40 |
The size of the menu buttons in pixels. Must be >= 20. |
buttons |
Whether to show or hide built-in buttons. See below. | |
position |
top |
Whether to show the menu on the left, right, top or bottom side of the card. Note that for the outside style only the top and bottom positions have an effect. |
style |
hidden |
The menu style to show by default, one of none, hidden, hover, hover-card, overlay, or outside. See below. |
buttons
All configuration is under:
menu:
buttons:
[button]:
[...]
Available Buttons
| Button name | Description |
|---|---|
camera_ui |
The camera_ui menu button: brings the user to a context-appropriate page on the UI of their camera engine (e.g. the Frigate camera homepage). Will only appear if the camera engine supports a camera UI (e.g. if frigate.url option is set for frigate engine users). |
cameras |
The camera selection submenu. Will only appear if multiple cameras are configured. |
clips |
The clips view menu button: brings the user to the clips view on tap and the most-recent clip view on hold. |
display_mode |
The display_mode button allows changing between single and grid views. |
download |
The download menu button: allow direct download of the media being displayed. |
expand |
The expand menu button: expand the card into a popup/dialog. |
frigate |
The Frigate menu button: brings the user to the default configured view (view.default), or collapses/expands the menu if the menu.style is hidden . |
fullscreen |
The fullscreen menu button: expand the card to consume the fullscreen. |
image |
The image view menu button: brings the user to the static image view. |
live |
The live view menu button: brings the user to the live view. |
media_player |
The media_player menu button: sends the visible media to a remote media player. Supports Frigate clips, snapshots and live camera (only for cameras that specify a camera_entity and only using the default HA stream (equivalent to the ha live provider). jsmpeg or webrtc-card are not supported, although live can still be played as long as camera_entity is specified. In the player list, a tap will send the media to the player, a hold will stop the media on the player. |
microphone |
The microphone button allows usage of 2-way audio in certain configurations. See Using 2-way audio. |
ptz |
The show_ptz button shows or hide the PTZ controls. |
recordings |
The recordings view menu button: brings the user to the recordings view on tap and the most-recent recording view on hold. |
screenshot |
The screenshot menu button: take a screenshot of the loaded media (e.g. a still from a video). |
snapshots |
The snapshots view menu button: brings the user to the clips view on tap and the most-recent snapshot view on hold. |
timeline |
The timeline menu button: show the event timeline. |
Options for each button
| Option | Default | Description |
|---|---|---|
alignment |
matching |
Whether this button should have an alignment that is matching the menu alignment or opposing the menu. Can be used to create two separate groups of buttons on the menu. priority orders buttons within a given alignment. |
enabled |
true for frigate, cameras, substreams, live, clips, snapshots, timeline, download, camera_ui, fullscreen, media_player, display_mode. false for image, expand, microphone, mute, play, recordings, screenshot, ptz |
Whether or not to show the button. |
icon |
An icon to overriding the default for that button, e.g. mdi:camera-front. |
|
priority |
50 |
The button priority. Higher priority buttons are ordered closer to the start of the menu alignment (i.e. a button with priority 70 will order further to the left than a button with priority 60, when the menu alignment is left). Minimum 0, maximum 100. |
style
This card supports several menu styles.
| Key | Description | Screenshot |
|---|---|---|

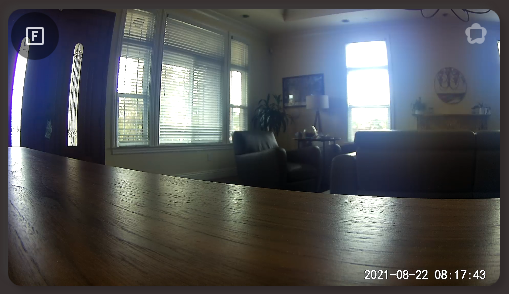

hidden |
Hide the menu by default, expandable upon clicking the Frigate button. |  |
hover-card |
Overlay the menu over the card contents when the mouse is over the card, otherwise it is not shown. The Frigate button shows the default view. |  |
hover |
Overlay the menu over the card contents when the mouse is over the menu, otherwise it is not shown. The Frigate button shows the default view. | |

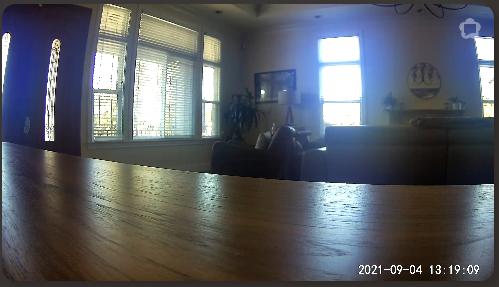

none |
No menu is shown. |  |

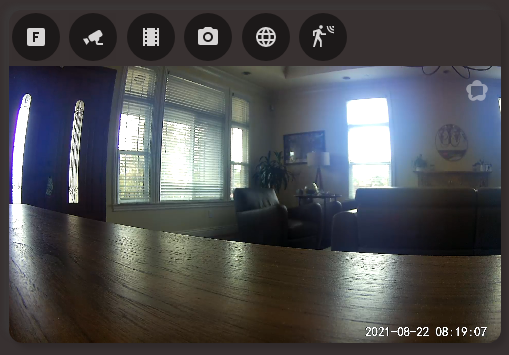

outside |
Render the menu outside the card (i.e. above it if position is top, or below it if position is bottom). The Frigate button shows the default view. |
 |

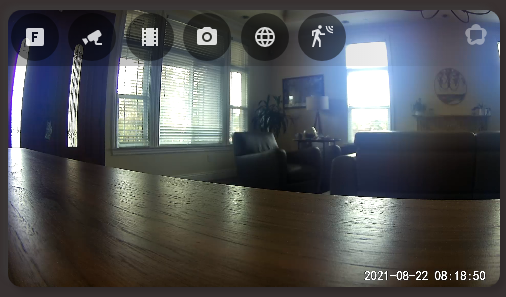

overlay |
Overlay the menu over the card contents. The Frigate button shows the default view. | |
Fully expanded reference
menu:
alignment: left
buttons:
frigate:
priority: 50
enabled: true
alignment: matching
# Default icon is an internal coded Frigate icon. Note
# absence of 'mdi' here (mdi has no Frigate icon).
icon: frigate
cameras:
priority: 50
enabled: true
alignment: matching
icon: mdi:video-switch
substreams:
priority: 50
enabled: true
icon: mdi:video-input-component
live:
priority: 50
enabled: true
alignment: matching
icon: mdi:cctv
clips:
priority: 50
enabled: true
alignment: matching
icon: mdi:filmstrip
snapshots:
priority: 50
enabled: true
alignment: matching
icon: mdi:camera
image:
priority: 50
enabled: false
alignment: matching
icon: mdi:image
timeline:
priority: 50
enabled: true
alignment: matching
icon: mdi:chart-gantt
download:
priority: 50
enabled: true
alignment: matching
icon: mdi:download
camera_ui:
priority: 50
enabled: true
alignment: matching
icon: mdi:web
fullscreen:
priority: 50
enabled: true
alignment: matching
icon: mdi:fullscreen
expand:
priority: 50
enabled: true
alignment: matching
icon: mdi:arrow-expand-all
media_player:
priority: 50
enabled: false
alignment: matching
icon: mdi:cast
microphone:
priority: 50
enabled: false
alignment: matching
icon: mdi:microphone
type: momentary
mute:
priority: 50
enabled: false
alignment: matching
icon: mdi:volume-off
play:
priority: 50
enabled: false
alignment: matching
icon: mdi:play
show_ptz:
priority: 50
enabled: false
alignment: matching
icon: mdi:pan
button_size: 40
position: top
style: hidden
